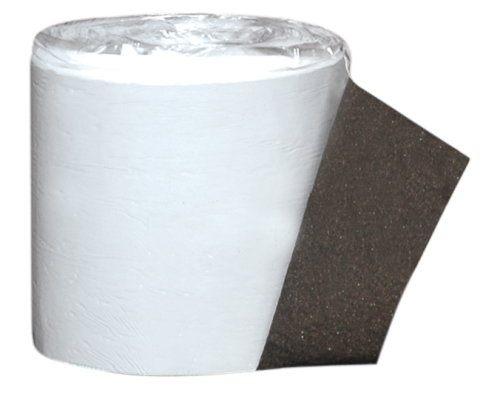

SOPRAGUARD TAPE

Name: SOPRAGUARD TAPE
SKU: SOP005305

Self-adhesive flame screen membrane composed of a glass mat reinforcement and SBS modified bitumen.

Documents

PDF

TDS - SOPRAGUARD TAPE Technical Data Sheets

PDF

SDS - Modified Bitumen Waterproofing Membrane Without Oxidized Bitumen Safety Data Sheets

PDF

LC- Leed Index Certification Index - LEED Certification

Benefits

Designed to prevent flame penetration in any gap, space or opening before the installation of a membrane applied using a torch.

Properties

Material

SBS modified bitumen

Function

Accessory products

Product role

Accessory

Building Component

Roofs

Underface

Silicone release film

Surface

Sanded

Application

Self-adhesive

Reinforcement

Glass mat

Product 3	Diameter	Slope	Colour/Finish	Length	Width	Thickness	Size	Weight	Volume	Quantity per packaging	Container	Granules size	Weight per surface (kg/m² or lb/ft²)	Coverage per pail	Gross area	Net area	Application temperature	Units per skid	R Value	Board thickness	Temperature grade	Fire resistant	Minimum Thickness	Maximum Thickness	Option
SOPRAGUARD TAPE 7.2" Product code: 0090005	Diameter	Slope	Colour/Finish	Length 19.8 m	Width 0.18 m	Thickness 1.6 mm	Size	Weight 7.3 kg	Volume	Quantity per packaging	Container	Granules size	Weight per surface (kg/m² or lb/ft²)	Coverage per pail	Gross area 3.5 m²	Net area	Application temperature	Units per skid 125	R Value	Board thickness	Temperature grade	Fire resistant	Minimum Thickness	Maximum Thickness	Option
SOPRAGUARD TAPE 6" Product code: 0090006	Diameter	Slope	Colour/Finish	Length 19.8 m	Width 0.15 m	Thickness 1.6 mm	Size	Weight 6.3 kg	Volume	Quantity per packaging	Container	Granules size	Weight per surface (kg/m² or lb/ft²)	Coverage per pail	Gross area 3 m²	Net area	Application temperature	Units per skid 150	R Value	Board thickness	Temperature grade	Fire resistant	Minimum Thickness	Maximum Thickness	Option
SOPRAGUARD TAPE 3" Product code: 90012	Diameter	Slope	Colour/Finish	Length 19.8 m	Width 0.08 m	Thickness 1.6 mm	Size	Weight 3.4 kg	Volume	Quantity per packaging	Container	Granules size	Weight per surface (kg/m² or lb/ft²)	Coverage per pail	Gross area 1.6 m²	Net area	Application temperature	Units per skid 300	R Value	Board thickness	Temperature grade	Fire resistant	Minimum Thickness	Maximum Thickness	Option
