SOPRA-XPS 30

SOPRA-XPS 30

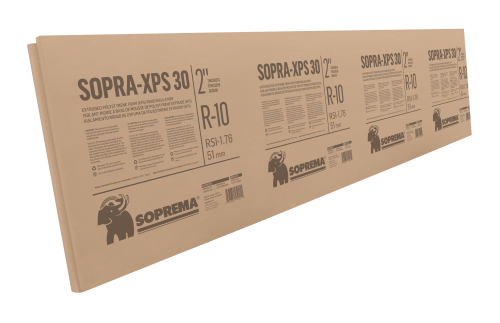

SOPRA-XPS 30 is a thermal insulation board made of rigid extruded polystyrene with shiplap or square edges on its four sides. It is composed of closed cell foam. It is mainly used as a thermal insulation for SOPREMA foundation walls systems and under concrete slabs where the applied loads do not exceed 30 psi. Compliant with CAN/ULC S701.1 Type 4.


Benefits

  • Exceptional water and moisture resistance
  • Durable and strong
  • Superior initial and long-term thermal performance (R-5/in)

Tests and certifications

ASTM LEED greenguard-gold CAN-ULC

Properties

Function

Insulation

Product roles

  • Insulation
  • Insulation board

Storage instructions

SOPRA-XPS 30 thermal insulation boards must be stored on a flat substrate, protected from UV and sheltered from inclement weather. As they are flammable, they must be protected and kept away from flames and intense heat sources during transportation, handling, storage, and installation.

Application

  • Adhesive
  • Mechanically fastened
  • Loose-laid

Technology

XPS - Extruded Polystyrene

Length

8 ft

R Value

5.0 per inch

Width

2 ft

Products

Products

Product code

Board thickness

SOPRA-XPS 30 with shiplap edges

Product code

44372

Board thickness

1 in

SOPRA-XPS 30 with shiplap edges

Product code

44373

Board thickness

4 in

SOPRA-XPS 30 with butt edges

Product code

44374

Board thickness

1,5 in

SOPRA-XPS 30 with shiplap edges

Product code

44434

Board thickness

2,5 in

SOPRA-XPS 30 with butt edges

Product code

44435

Board thickness

1 in

SOPRA-XPS 30 with butt edges

Product code

44436

Board thickness

4 in

SOPRA-XPS 30 with shiplap edges

Product code

45000

Board thickness

1.5 in

SOPRA-XPS 30 with shiplap edges

Product code

45001

Board thickness

2 in

SOPRA-XPS 30 with shiplap edges

Product code

45002

Board thickness

3 in

SOPRA-XPS 30 with butt edges

Product code

45003

Board thickness

2 in

SOPRA-XPS 30 with butt edges

Product code

45004

Board thickness

3 in

Accessory products

SOPRASEAL LM 200 T

Water-based, single-component, liquid air/vapour barrier made of synthetic rubbers used on walls. It is also [...]

Show the product
