SOPRA-XPS 25 CW

SOPRA-XPS 25 CW

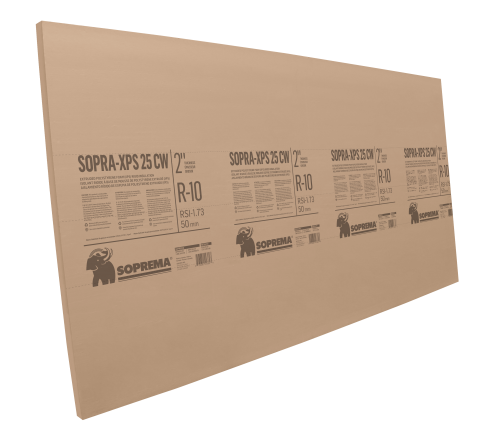

SOPRA-XPS 25 CW is a thermal insulation boards made of rigid extruded polystyrene with square edges on its four sides. It is composed of closed cell foam. It is mainly used as a thermal insulation for SOPREMA cavity wall systems. SOPRA-XPS 25 CW is scored squared at every 400 mm (16 in) and 600 mm (24 in) lengthwise to facilitate cutting of the board when it's being installed between wall ties. Compliant with CAN/ULC S701.1 Type 3.


Benefits

  • Exceptional water and moisture resistance
  • Durable and strong
  • Superior initial and long-term thermal performance (R-5/in)

Tests and certifications

ASTM LEED greenguard-gold CAN-ULC

Properties

Function

Insulation

Product roles

  • Insulation
  • Insulation board

Application

  • Adhesive
  • Mechanically fastened

R and RSI Value Converter

Technology

XPS - Extruded Polystyrene

R Value

5.0 per inch

Width

1200 mm

Length

2400 mm

Products

Products

Board thickness

Product code

Units per skid

SOPRA-XPS 25 CW with square edges

50 mm

Board thickness

44369

24

SOPRA-XPS 25 CW with square edges

75 mm

Board thickness

44370

16

SOPRA-XPS 25 CW with square edges

100 mm

Board thickness

44371

12

SOPRA-XPS 25 CW with square edges

40 mm

Board thickness

44432

28

SOPRA-XPS 25 CW with square edges

61 mm

Board thickness

44433

20
